Executive Summary
- Chemistry: HFFR relies on endothermic hydration of ATH/MDH filters, not radical scavenging.
- Safety: Achieves near-zero Toxicity Index and >90% Light Transmission in smoke tests.
- Compliance: Mandatory for IEC 60332, RoHS, and REACH compliant projects.
- TapTech Advantage: Solves the "processability vs. flame retardancy" trade-off.
Fire safety has become one of the most critical priorities across modern infrastructure, transportation systems, data centers, residential buildings, and industrial environments. As electrical cables play a crucial role in these systems, the demand for HFFR (Halogen-Free Flame Retardant) and LSZH (Low Smoke Zero Halogen) compounds has skyrocketed.

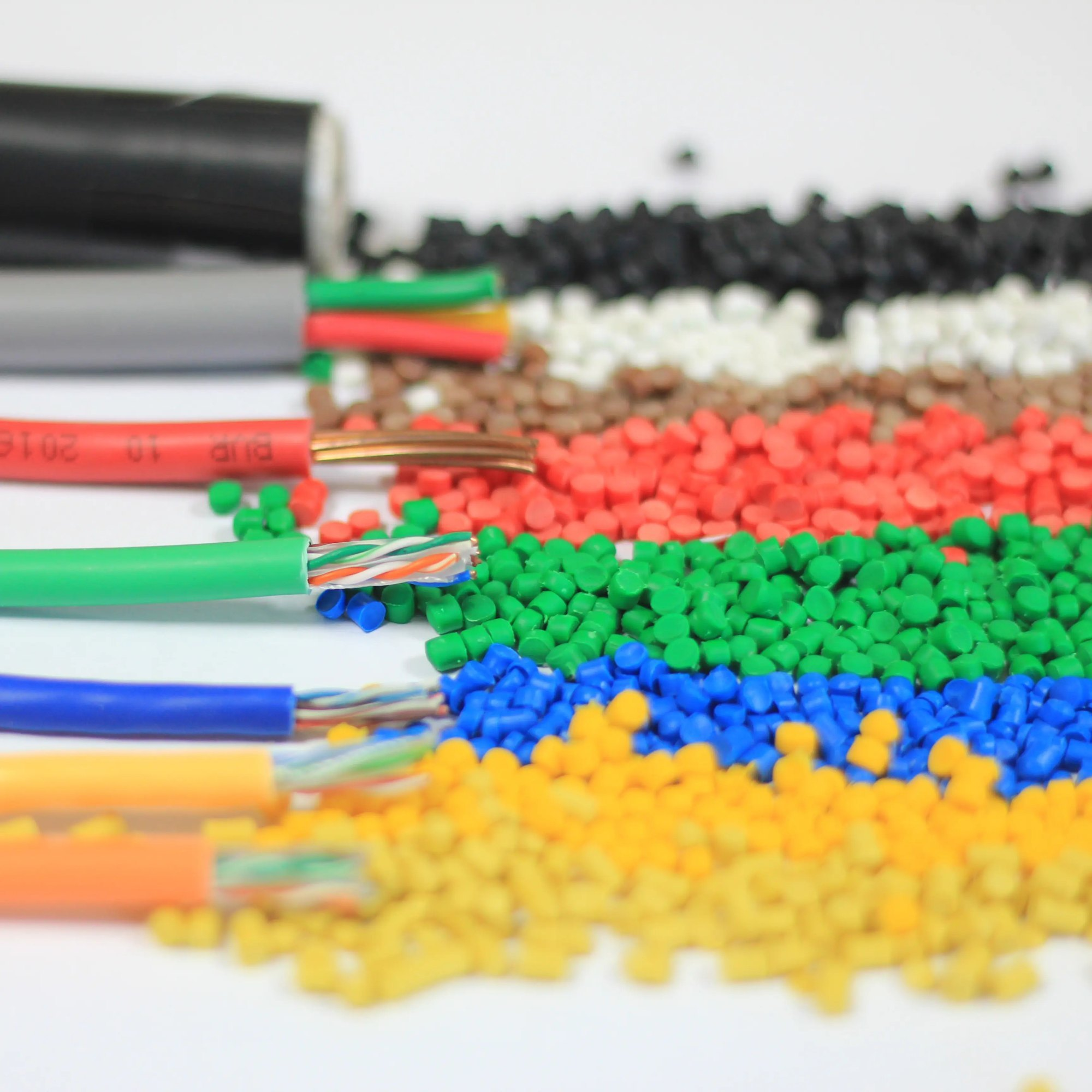

This guide provides a deep technical analysis of HFFR compounds, exploring their polymer chemistry, additives like ATH and MDH, manufacturing challenges, and how TapTech technology is redefining global safety standards.
“Zero Halogen. Zero Compromise on Safety.”
1. Decoding the Terminology: HFFR vs. LSZH vs. LSHF
While often used interchangeably in the cable insulation material market, these terms represent specific performance criteria:
- HFFR (Halogen-Free Flame Retardant): Compounds free from Chlorine, Fluorine, Bromine, or Iodine. They rely on mineral flame retardants to suppress fire without emitting acid gas.
- LSZH (Low Smoke Zero Halogen): Focuses on smoke density. These materials allow for >60% Light Transmission during combustion, ensuring visibility for evacuation.
- XLPO (Crosslinked Polyolefin): Thermoset HFFR used in Solar (PV) cables and automotive applications for superior thermal stability (up to 120°C).
2. The Chemistry of Fire Safety
Unlike PVC, which uses halogenated radical scavengers, HFFR compounds function through a physical mechanism known as endothermic decomposition. The core formulation involves:
A. Polymer Bases
The polymer matrix dictates mechanical properties like tensile strength and elongation. Common bases include:
- Ethylene-Vinyl Acetate (EVA): High filler acceptance and flexibility. Ideally with Vinyl Acetate (VA) content >28%.
- Polyethylene (LLDPE/LDPE): Used for sheathing where rigidity and abrasion resistance are required.
- Polyolefin Elastomers (POE): Enhances impact resistance and low-temperature flexibility (-40°C).
B. ATH vs. MDH: The Fire Suppressants
TapTech utilizes high-purity Aluminum Trihydrate (ATH) and Magnesium Hydroxide (MDH). The choice depends on processing temperature:
| Additive | Decomposition Temp | Best Application |
|---|---|---|
| ATH (Aluminum Trihydrate) | 180°C - 200°C | Standard HFFR, Low Voltage Cables |
| MDH (Magnesium Hydroxide) | 300°C - 330°C | High-Temp Processing, Automotive, Aerospace |
Limiting Oxygen Index (LOI) Comparison
TapTech HFFR achieves an LOI > 35%, meaning it cannot burn in normal atmospheric conditions (21% Oxygen).
3. HFFR vs. PVC: A Technical Comparison
Why shift from PVC? The answer lies in toxicity and smoke generation.
| Property | HFFR / LSZH | Standard PVC |
|---|---|---|
| Halogen Content | Zero | High (Chlorine) |
| Smoke Emission | Very Low (Translucent) | High (Thick Black) |
| Acid Gas | < 0.5% | ~ 30% (HCl Gas) |
| Specific Gravity | 1.45 - 1.55 | 1.30 - 1.45 |
Smoke Density Test (IEC 61034)
Higher Light Transmission (%) = Better Visibility. PVC drops to <20%, TapTech stays >90%.
4. Global Standards & Testing Requirements
TapTech compounds are designed to meet the most stringent international regulations:
- IEC 60332-1/3: Tests for vertical flame propagation on single and bunched cables.
- IEC 60754-1/2: Determines the amount of halogen acid gas evolved during combustion.
- IEC 61034-2: Measurement of smoke density (3m cube test).
- UL 94: Flammability standard for plastic materials (V-0, V-1, V-2 ratings).
5. Critical Applications & Industries
Infrastructure
Metro & Rail: Tunnel wiring requires strict toxicity limits. TapTech prevents acid gas accumulation.
Data Centers
Telecom & LAN: HFFR prevents HCl gas from corroding expensive server equipment during small fires.
6. Manufacturing & Troubleshooting
Processing highly filled HFFR compounds (often 60%+ mineral loading) is challenging. It can lead to issues like high viscosity, screw torque build-up, and rough surface finish (shark skin).
Troubleshooting Guide
| Problem | Likely Cause | Solution |
|---|---|---|
| Rough Surface | Melt fracture or low temp | Increase die temp; use PPA (Polymer Processing Aid). |
| Porosity / Bubbles | Moisture in compound | Pre-dry material at 60-70°C for 2-4 hours. |
| Die Drool | Filler accumulation | Check die geometry; ensure smooth flow path. |
7. Future Trends in Halogen-Free Materials
The industry is evolving towards Nano-additive flame retardants for lower dosage efficiency and Bio-based HFFR for sustainability. Taprath is at the forefront, developing Solar Cable Compounds capable of withstanding 25 years of UV exposure.
Conclusion
HFFR and LSZH compounds are the future of safe, sustainable cable materials. Whether you are a cable manufacturer or materials engineer, shifting to TapTech ensures compliance with global safety standards without compromising on processability.
Looking for high-performance HFFR compounds manufacturer in India? Contact Taprath's technical team for TDS and trial samples.
